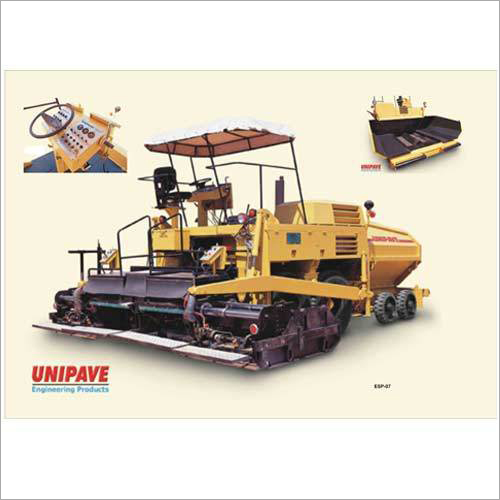

Wheel Mounted Sensor Paver Finisher

Wheel Mounted Sensor Paver Finisher

1000000.00 - 1500000.00 INR/Unit

Product Details:

  • Warranty 1 Year
  • Supply Ability : 10 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 1000000.00 - 1500000.00 INR/Unit

Product Specifications

  • 1 Year

Trade Information

  • 10 Unit Per Month
  • 10 Days
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India

Product Description

We are delivering our clients high quality wheel mounted sensor paver finisher. Easy to operate and maintain, it is highly demanded by the clients for its features such ashydrostatic transmission, hydraulic drive for conveyor, 4 nos. rear wheels on equalizer beam, sliding type control panel, double operator seats, hydraulically extendable screed with tamping, vibration and heating facility. Simple switches are given in the control panel for easy operation. Wheel mounted sensor paver finisher distributes loads on all the wheels which provides better grip on the ground.

Technical Information


Prime Mover

Kirloskar make water-cooled electric start diesel engine, Model 6R 1080 TA1, 125 hp @ 2200 rpm or equivalent

Power Distribution Gearbox

Coupled with engine for coupling 3 pump sets.

Material Laying Capacity

300 TPH

Material Laying Thickness

10 mm (Min) to 300 mm (Max)

Transmission

Hydrostatic

Conveyor Drive

Hydraulic

Maintenance Shutters

On three sides of machine

Front Wheel

Solid Rubber Tyre
4 Nos.
550 Dia. x 175 mm width

Rear Wheel

Pneumatic Tyre
4 Nos.
Size: 10.00 x 20

Operator Panel Type

Sliding Type

Travelling Function

Left & Right side

Operating Function

Left & Right Side

Operator Seat

Double Operator Seat

Machine Steering

Hydrostatic steering for effortless operation.

Operation Controls

Using Simple Switches

Speed Reduction Gearbox

Speed reduction gearbox to achieve low speed for paving and high speed for traveling.

Gears / shaft of gear box

Made from alloy steel and are hardened and ground for efficient working.

Hopper & Feeding System

Hydraulic

Hooper Capacity

4.25 CM

Auger Screw

Dia 350 mm

Battery

12 V DC

Screed width

2.5 m basic width, Hydraulically extendable up to 4.5 m, further bolt on extension up to 5.5 m.

Screed Heating

Yes, with 8 LPG burner facility

Screed Crown

-1 / +4

Screed Vibration

Yes, infinitely variable upto
50.00 Hz (Max.)

Screed Tamping

Yes, infinitely variable
33.33 Hz (Max.)

Slope & Grade Control

Auto & Manual mode, Electronic sensor of MOBA, Germany make

Working Speed

0 to 30 meters/min Max

Travelling Speed

0 to 16 km/hr Max

Capacity of Tank

Fuel: 145 L
Hydraulic Oil: 260 L

Weight

14,100 kg. (Approx)

Hopper width

Closed : 2.440 m
Open : 3.220 m

Machinery Length

6.670 m

Machinery Height

Working: 3.470 m
Compact: 2.900m

Machinery Accessories

Canvas Canopy
Working Lights
Traveling Lights
Tool Kit with Jack
Horn

Material Laying Suitability

Bitumin
Optional: Wetmix, DLC, DBM, GSB

Emission Standard

BS-III

Brake

Caliper disc brakes on both the side

Traction & Conveyor Pump Motor

Danfoss (Germany make) or equivalent


Product Details


Brand/Make

UNIPAVE

Condition

Manufacturer

Engine Power (HP)

Kirloskar make engine Model 4R 1040T developing 76hp @ 2300 rpm

Weight (kg)

10,000 kg (approx.)

Screed Size (m)

Screed width2.5 m basic width, Hydraulically extendable upto 4.5 m

Voltage (V)

Not applicable

Laying Capacity

Material Laying Suitability Bitumin Optional: Wetmix, DLC, DBM, GSB
