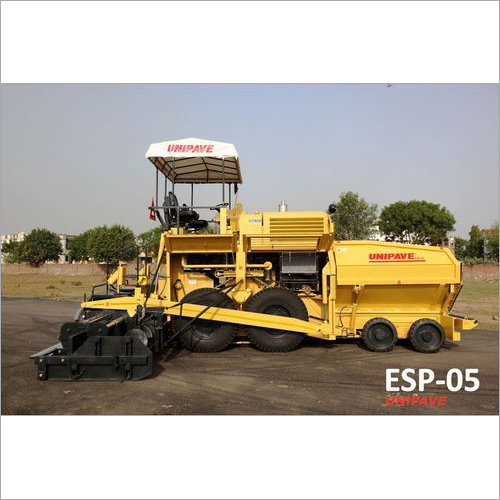

Sensor Paver

Leveraging upon our technologically-advanced production facility, we are highly engaged in manufacturing, exporting and supplying Sensor Paver to our prestigious clients spread all across the country. The paver provided by us is basically used in road construction sites to lay asphalt on roads, bridges, parking lots and other such places. Beside this, offered Sensor Paver is manufactured under the strict vigilance of our qualified professionals using optimum grade components with the help of advanced technology.

Features:

• Hydrostatic Paver with two pneumatic tyre in rear axle and two solid rubber tyre in front axle

• Powered by Kirloskar make engine Model 4R 1040T developing 76hp @ 2300 rpm

• Hydraulic Steering for smooth working

• Electronic sensors for slope and grade control of Moba, Germany make

• Paving Thickness up to 200 mm. Material Laying Capacity 150 TPH

• Screed 2.5 m basic width, Hydraulically extendable up to 4.5 m

• Operator Panel Sliding type with traveling functions on L & R side with double operator seat. Operating functions on L side.

• Hydrostatic steering for effortless operation.



   TECHNICAL SPECIFICATION

  Prime Mover	Kirloskar make water-cooled electric start diesel engine, Model 4R 1040T, 76 hp @ 2000 rpm or equivalent	Power Distribution Gearbox	Coupled with engine for coupling 3 pump sets.
  Material Laying Capacity	125 TPH	Material Laying Thickness	10 mm (Min) to 200 mm (Max)
  Transmission	Hydrostatic	Conveyor Drive	Hydraulic
  Maintenance Shutters	On three side of machine	Front Wheel	Solid Rubber Tyre 2 Nos.  550 Dia. x 175 mm width
  Rear Wheel	Pneumatic Tyre 4 Nos. Size: 11.00 x 20	Operator Panel Type	Sliding Type
  Travelling Function	Left & Right side	Operating Function	Left & Right Side
  Operator Seat	Double Operator Seat	Machine Steering	Hydrostatic steering for effortless operation.
  Operation Controls	Using Simple Switches	Speed Reduction Gearbox	Two speed reduction gearbox to achieve low speed for paving and high speed for traveling.
  Gears / shaft  of gear box	Made from alloy steel and are hardened and ground for efficient working.	Hopper &  Feeding System	Hydraulic
  Hooper  Capacity	4.25 CM	Auger Screw	Dia 250 mm (10”) Ni-Hard / High Chromium Steel Material
  Battery	12 V DC	Screed width	2.5 m basic width, Hydraulically extendable upto 4.5 m
  Screed Heating	LPG Gas Burner (Manually Operated)	Screed Crown	-1° / +4°
  Screed Vibration	Yes, infinitely variable upto 50.00 Hz (Max.)	Screed Tamping	Yes, infinitely variable 33.33 Hz (Max.)
  Working Speed	0 to 30 meters/min Max	Slope & Grade Control	Auto & Manual mode through Electronic sensor of MOBA, Germany make
  Capacity of Tank	Fuel : 76 L Hydraulic Oil : 192 L	Travelling Speed	0 to 16 km/hr Max
  Hopper width	Closed : 2.440 m Open : 3.220 m	Weight	10,000 kg (approx.)
  Machinery Height	Working : 3.550 m Compact : 2.800 m	Machinery Length	5.585 m
  Material Laying  Suitability	Bitumin Optional: Wetmix, DLC, DBM, GSB	Machinery Accessories	1. Canvas Canopy 2. Working Lights 3. Traveling Lights 4. Tool Kit with Jack 5. Horn

  Product Details

  Brand/Make	UNIPAVE
  Condition	Manufacturer
  Engine Power (HP)	Kirloskar make engine Model 4R 1040T developing 76hp @ 2300 rpm
  Weight (kg)	10,000 kg (approx.)
  Screed Size (m)	Screed width2.5 m basic width, Hydraulically extendable upto 4.5 m
  Voltage (V)	Not applicable
  Laying Capacity	Material Laying Suitability Bitumin Optional: Wetmix, DLC, DBM, GSB
